4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining

4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining
4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining

Grande immagine :  4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining

Dettagli:
Luogo di origine: Hunan, Cina
Marca: SOLLROC
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1
Prezzo: $100
Contatto

4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining

descrizione
Peso: 80,7 kg Materiale: Acciaio carburizzato
Tipo di elaborazione: trattamento termico e processo di lavorazione MISURARE: 4 pollici
Stinco: DHD340/SD4/QL40/M40 Diametro del bit: 125 mm
Fori di lavaggio: 2*18 Buttoni di misura: 8*14
Buttoni anteriori: 7*13 Diametro pulsante: 9,0 millimetri
Forma della faccia: Centro cadente, concavo, convesso, doppio calibro, faccia piatta Forma del pulsante: A cupola/rotondo, parabolico/semi-balistico, balistico, affilato, piatto
Pressione dell'aria: Alta pressione dell'aria Tipo del tagliente: DTH Drill Bit
Compatibilità della macchina: Strumento di perforazione
Evidenziare:

4''-125mm DTH Drill Bits

,

Carburized Steel Button Bits

,

Water Well Drilling Down The Hole Bits

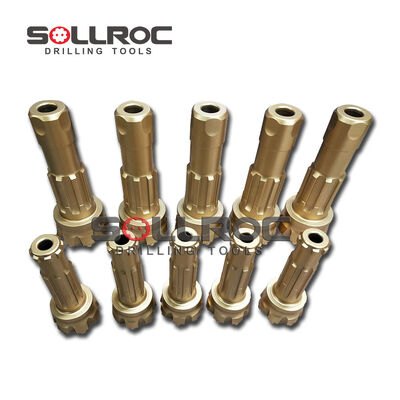

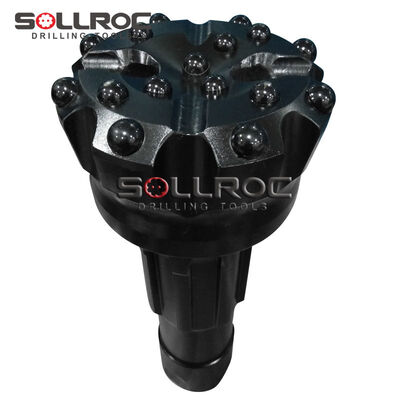

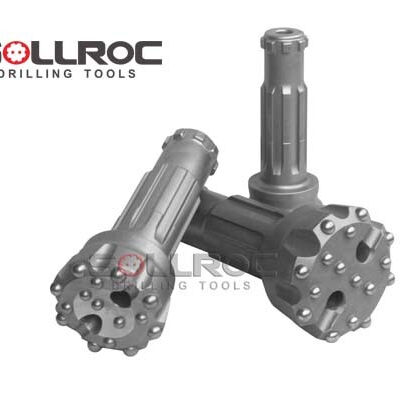

4" (125mm) DTH Drill Bit for Water Well Drilling & Mining
We manufacture and export high-quality DTH Hammers designed for superior performance in demanding drilling applications. Our hammers are precision-engineered using premium raw materials and advanced manufacturing techniques to ensure durability and reliability. Specifically designed for high-pressure drilling rigs, these DTH Hammers deliver exceptional performance across various technical specifications at competitive industry rates.
Technical Specifications
Bit Diameter Flushing Holes Gauge Buttons Front Buttons Weight (Kg)
125 mm (4 15/16") 2 * 18 mm 8 * 14 mm 7 * 13 mm 9.0
Bit Face Shape Selection
  • Drop Center Bit: Ideal for high penetration rates in soft to medium hard and fissured rock formations. Operates with low to medium air pressures and provides maximum hole deviation control.
  • Concave Face: Versatile all-round application bit for medium hard and homogeneous rock formations. Offers good hole deviation control and excellent flushing capacity.
  • Convex Face: Delivers high penetration rates in soft to medium-hard formations with low to medium air pressures. Provides maximum resistance to steel wash and reduces load on gauge buttons, though with less hole deviation control.
  • Double Gauge Face: Suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures with good resistance to steel wash.
  • Flat Face Bit: Perfect for hard to very hard and abrasive rock formations in high-pressure applications. Combines good penetration rates with excellent resistance to steel wash.
Carbide Button Shape Selection
  • Domed/Round Button: Typically used as gauge buttons, suitable for every abrasive and very hard formations.
  • Parabolic/Semi-Ballistic Buttons: Used as both gauge and front buttons, ideal for medium abrasive and hard formations.
  • Ballistic Button: Primarily used as front buttons for medium abrasive and medium hard formations. Can also serve as gauge buttons in soft rock conditions.
  • Sharp Button: Designed as front buttons for soft formations where fast penetration rates are achievable.
  • Flat Button: Used as protection buttons to reduce wear on rubbing surfaces of DTH bits.
Shipping & Packaging
Shipping Methods: Available by Air, Sea, or Express delivery.
Packaging: Securely packed in ply-wooden cases with pallets for safe transportation.
Product Images
4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 0 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 1 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 2 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 3 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 4 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 5
Related Products
4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 6 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 7 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 8 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 9 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 10 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 11
