Dettagli:
|
| Peso: | 24 kg | Materiale: | Acciaio carburizzato |
|---|---|---|---|
| Tipo di elaborazione: | Forgiatura | Diametro: | 6 pollici |
| Forma del viso: | Piatto, convesso, concavo | Tipo di pulsante: | Sferico, parabolico, balistico |
| Ha morso il diametro: | 152 mm | Macchinetta a mandata d'aria: | 2 |
| Pulsanti del calibro: | 8×φ18 | Buttoni anteriori: | 4×φ16+4×φ14 |
| Parte n: | HD65-152 | Tipo del tagliente: | dth bit del pulsante |
| Punte a gambo: | 6 pollici | Diametro punta (pollici): | 6 " |
| Modello del prodotto: | QL60 | ||
| Evidenziare: | 6 Inch DTH Drill Bits,High Wear Resistance DTH Button Bits,1 Year Warranty Down The Hole Drill Bits |
||
We are a leading manufacturer of rock drilling tools, specializing in DTH hammers and bits, DTH drill pipes, RC hammers, top hammer button bits, couplings, cross bits, and drill rods. Based in Changsha, Hunan, China, we bring 20 years of expertise in DTH hammer and bit manufacturing. Our commitment to high quality, professional service, and competitive pricing has earned us a strong reputation among customers worldwide, including France, Spain, Italy, South Africa, Australia, Iran, Malaysia, and more.
DTH hammers and bits are essential for various industrial applications including:
Key advantages include high flatness, smooth hole walls, rigid drill rods and hammers, independence from high axial thrust, unlimited drilling depth capability, low device costs, and easy maintenance.
| 6" Shank Bits | Bit Dia (mm) | Bit Dia (inch) | Air Hose | Gauge Buttons | Front Buttons | Part No |
|---|---|---|---|---|---|---|
| QL60 | 152 | 6" | 2 | 8×φ18 | 4×φ16+4×φ14 | HD65-152 |
| 156 | 6 1/8" | 2 | 8×φ18 | 4×φ16+4×φ14 | HD65-156 | |
| 160 | 6 5/16" | 2 | 8×φ18 | 4×φ16+4×φ14 | HD65-160 | |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | HD65-165 | |

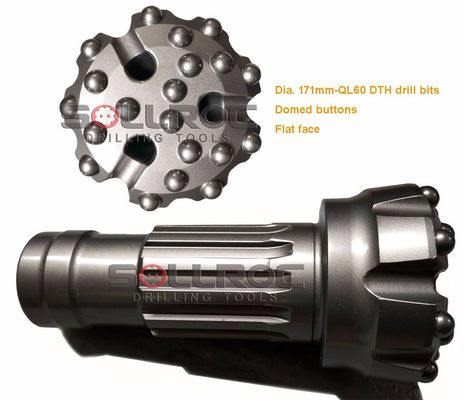

| 171 | 6 3/4" | 2 | 8×φ18 | 10×φ16 | HD65-171 | |
| 185 | 7 1/4" | 2 | 9×φ18 | 10×φ16 | HD65-185 | |
| 190 | 7 1/2" | 2 | 10×φ18 | 13×φ16 | HD65-190 | |
| 203 | 8" | 2 | 10×φ18 | 14×φ16 | HD65-203 |
Our hammers are constructed from high-quality steel with all components undergoing strict inspection before shipping. We maintain quick response times for all customer complaints and suggestions.
Products are securely packaged in ply-wooden cases and pallets for export to prevent damage during transportation. Custom packaging solutions are available upon request.
Standard production time is 15-25 days. We offer flexible transportation options including air freight, express shipping, or sea freight according to customer requirements.
